Model Page Sea Raider Series
Overview
Bigger water. Bigger capability.
The Sea Raider Series takes everything that makes the Coastal so versatile and scales it up into a larger, more capable platform. With its 1' wider bottom, taller sides, higher self-bailing deck, and expanded fuel capacity, the Sea Raider is built for anglers who want more room, more range, and more confidence when the water gets rough.
What Sets the Sea Raider Apart
The Sea Raider brings the same commercial-grade DNA as the Coastal, but in a larger package designed for serious offshore and inland adventures:
-
.250" bottom plating and .160" side sheets – heavy-gauge construction for unmatched strength and a solid ride
-
Taller sides & higher self-bailing deck – more freeboard and more security in rough seas
-

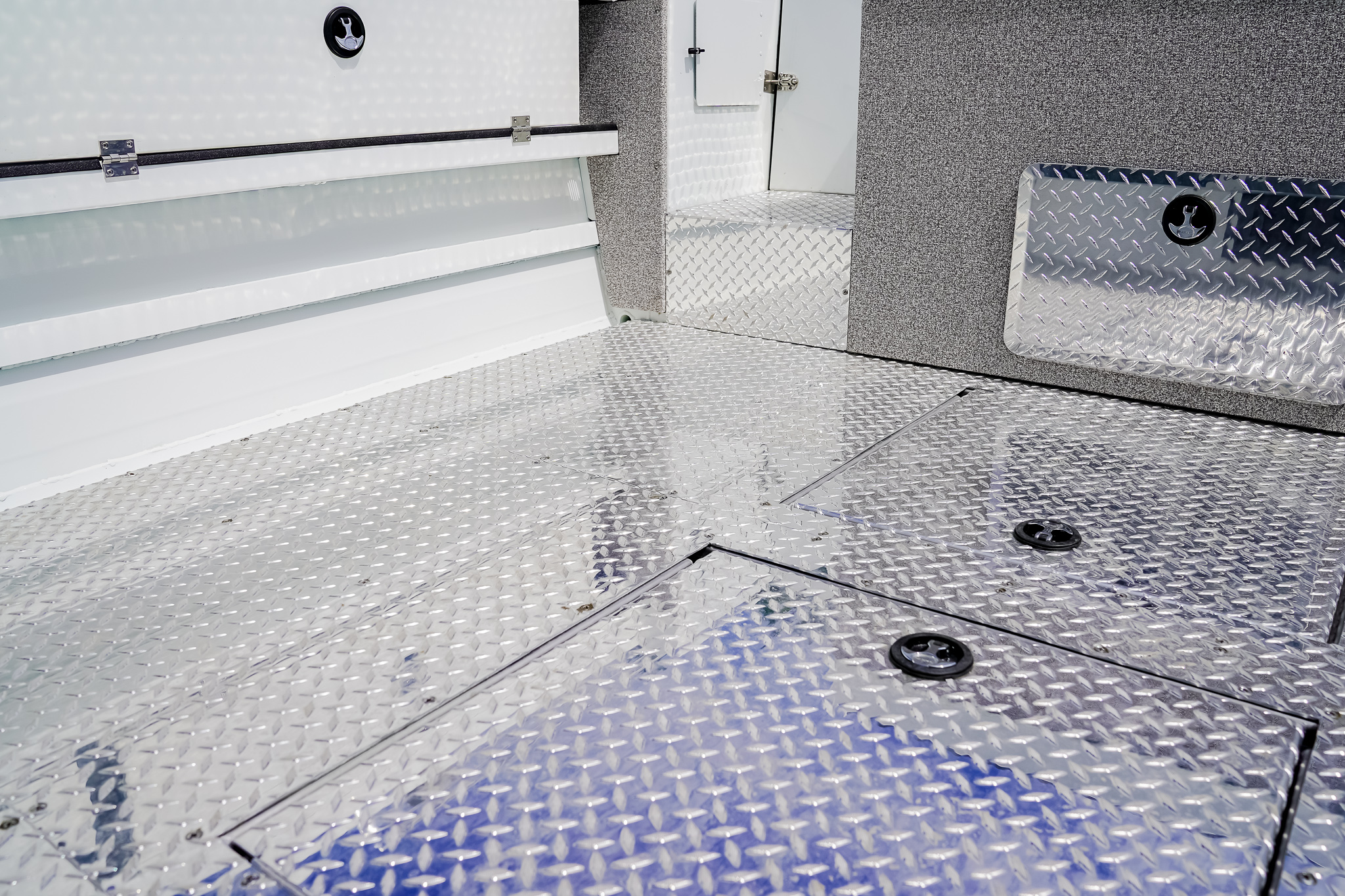

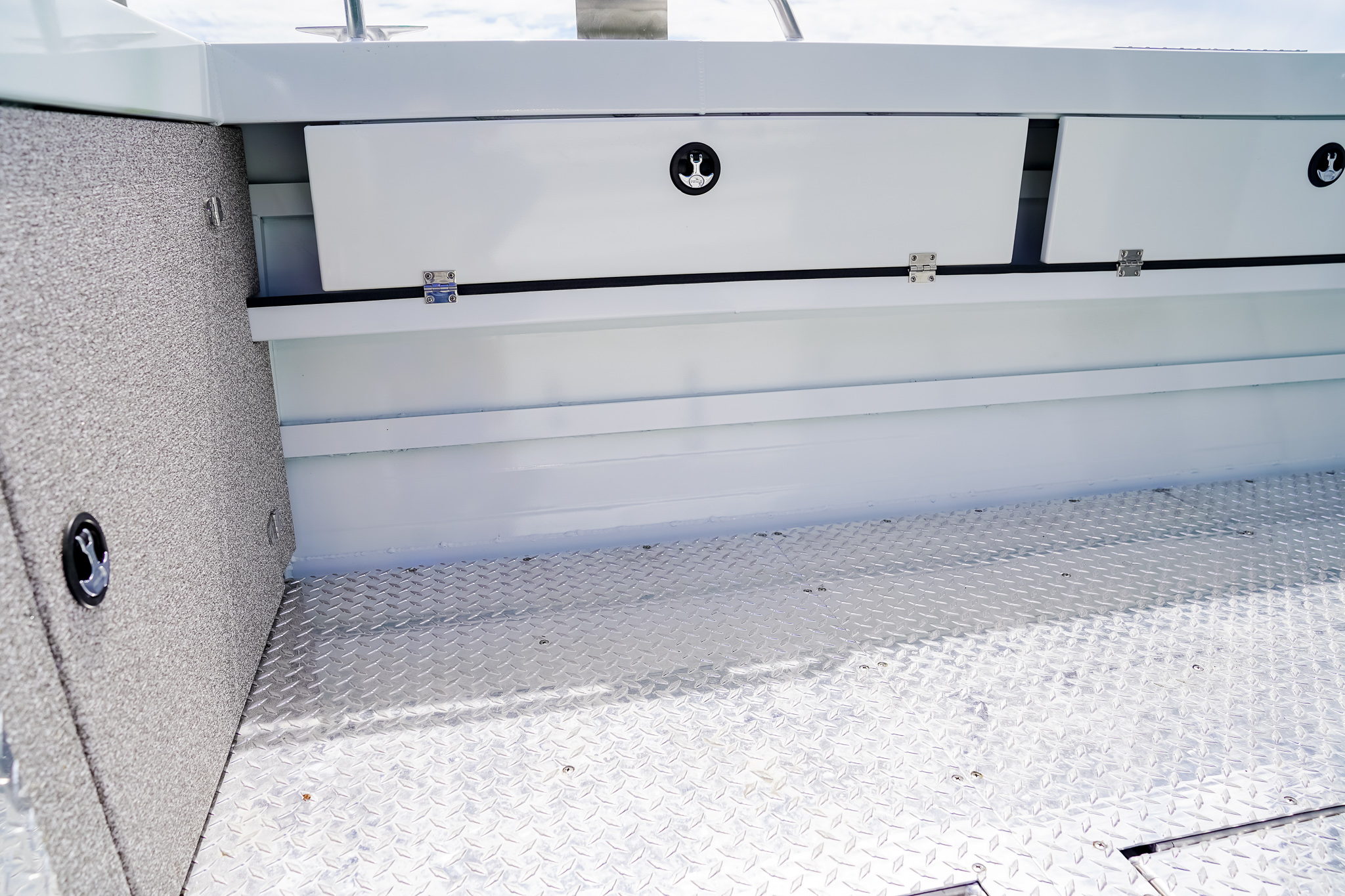

Optional full welded-out decking & interior – clean, premium finish with the toughness of true commercial-grade build
-
High bow sheer – raised forward profile that keeps the bow drier and safer at slower speeds in heavy seas
-
Full chine weld-outs – prevents crevice corrosion and protects paint finish for long-term durability
-
Welded through-hulls with standpipes – commercial-grade construction, no plastic fittings, no weak points
-
Integrated chambered offshore bracket – adds buoyancy, balances the hull, improves hole shot, and provides sealed flotation safety
-
Bright-dipped anodized rails – welded, mirror-finished, and corrosion-resistant
-
30" welded overhang – extended protection from sun, rain, and spray without giving up deck space
-
Triple bilge pumps – standard redundancy for maximum confidence offshore
-
Dual- or triple-bank battery management systems with ACR – isolated starting and house power with automatic charging and backup redundancy
-
Expanded fuel capacity – greater range to run farther and fish longer
The Sea Raider is the answer for anglers who love the versatility of the Coastal but want more boat under their feet. Bigger, stronger, and built for the long haul.. that’s the Sea Raider.

360° Virtual Tour
Boat Videos
Sea Raider Series Specifications
Sea Raider Specs
Features
- SPECS 250 270 290
- LENGTH 25'6" 27'6" 29'6"
- LOA (W/ GIL BRACKET) 27'8" 29'8" 31'8"
- WEIGHT (DRY) 5500 6000 6500
- FUEL 125 160 190
- DEADRISE 18° 18° 18°
- AMIDSHIP DEADRISE 24° 24° 24°
- BOW ENTRY 40° 40° 40°
- BOTTOM 96" X .250" H116 5086 96" X .250" H116 5086 96" X .250" H116 5086
- SIDES 38" X .160" 38" X .160" 38" X .160"
- COCKPIT DEPTH 32" 32" 32"
- HP MAX 400HP 500HP 600HP
